Door Dual Zone Drawer Wine And Beverage Refrigerator | BD425D-X-B

by Bar Fridges Australia

Save $80.00

$1,997.00

$1,917.00

🍷 Dual zone design for wine and beverage storage

📦 Large 405L capacity with 63 bottle wine storage

📏 Full-height 1800 mm upright display fridge

🧊 Triple glazed LOW E glass reduces condensation

🧱 Front venting design suitable for built-in installation

🔇 Quiet 43 dB operation for indoor environments

🔧 Telescopic shelving with adjustable bottle spacing

🥤 Separate lower drawers for organised drink storage

🔎 Overview

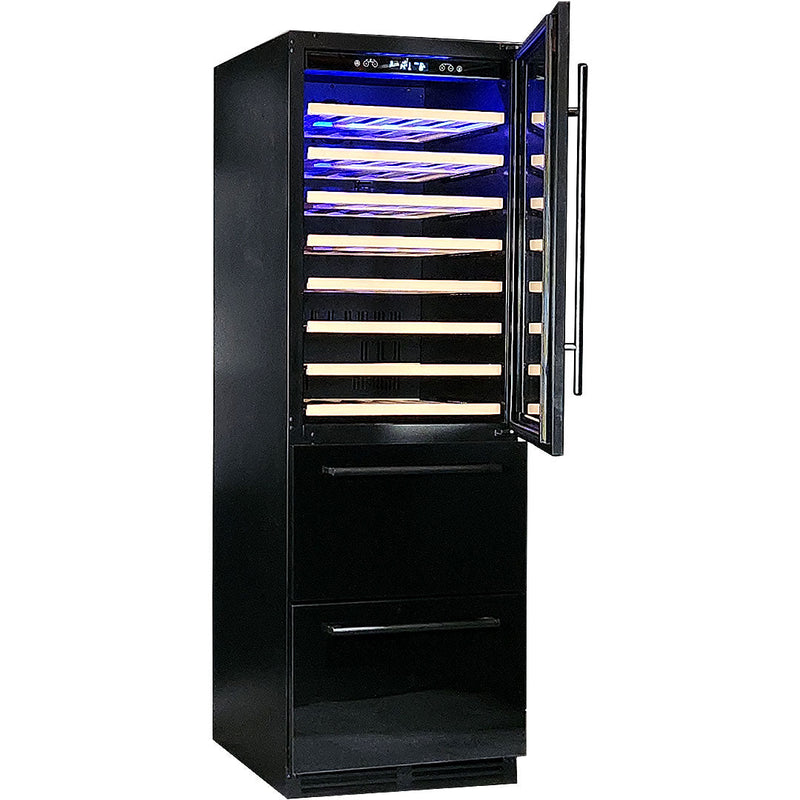

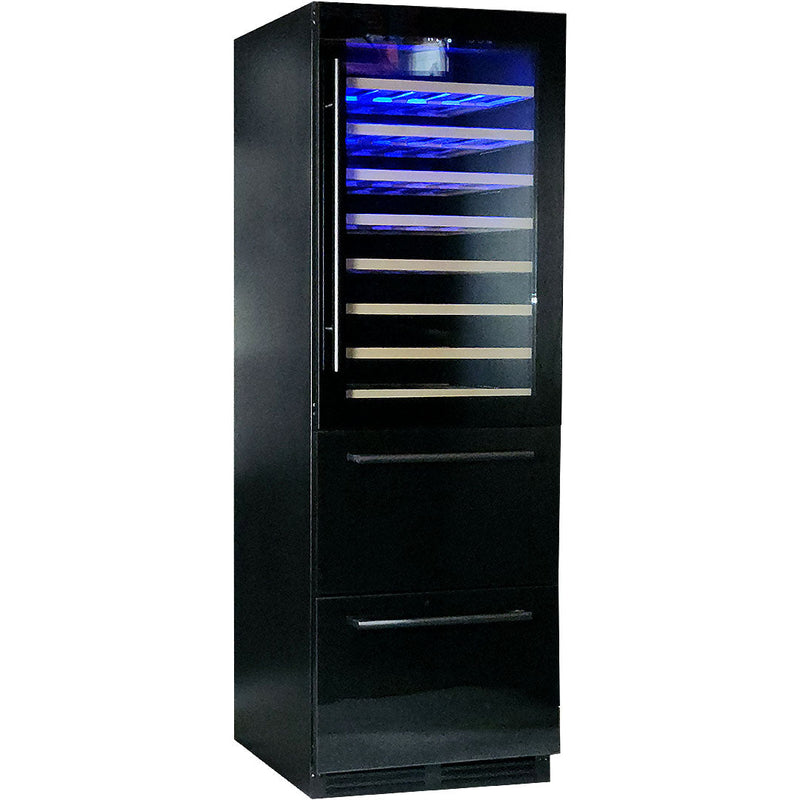

The Schmick BD425D-X-B dual zone wine and beverage refrigerator is a 405-litre upright bar fridge featuring a top glass door wine storage section and dual drawer beverage zones, designed for home bars, kitchens and premium entertaining spaces.

This unit is built as a true dual-zone system, with the upper section designed for wine storage and two lower drawers for colder beverages. It allows you to store red and white wine at serving temperatures while keeping cans and drinks chilled separately below.

With triple glazed LOW E glass, quiet fan operation, premium internal shelving systems and front venting design, the BD425D-X-B is suited to both freestanding use or built-in installation in Australian indoor environments.

⭐ Main Features

• Dual zone wine and beverage refrigerator with separate temperature zones

• Top glass door wine storage section with display lighting

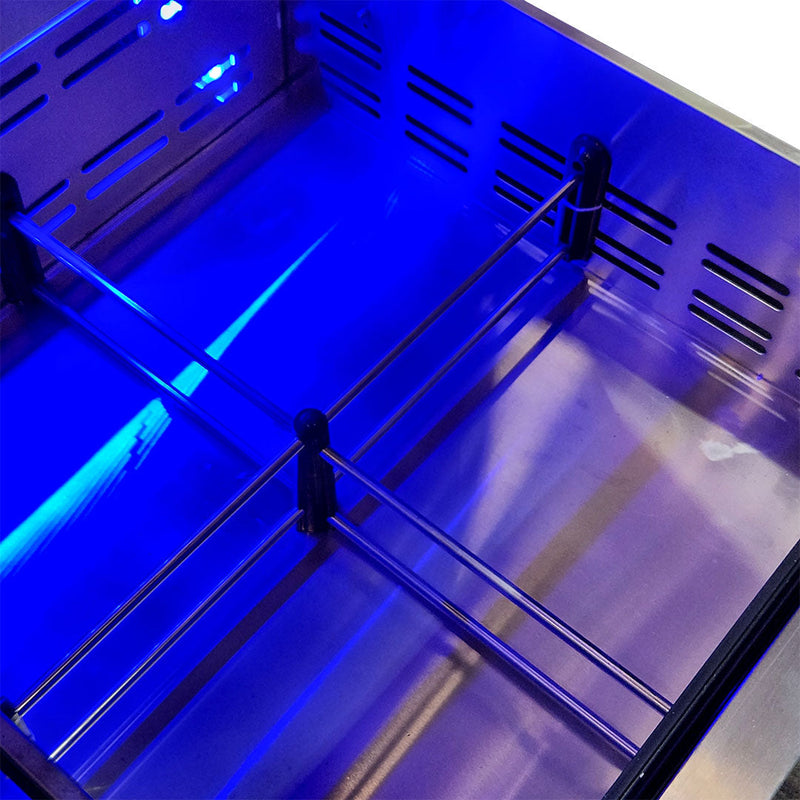

• Two lower drawers for beverage storage with dividers

• Triple glazed LOW E glass door to reduce condensation

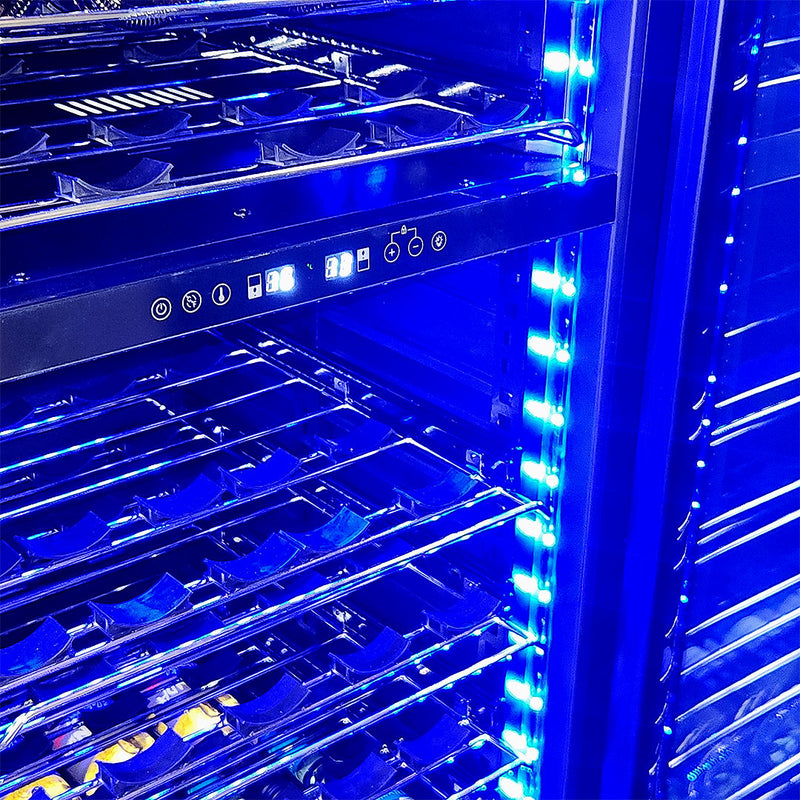

• Electronic touch button controls

• Patented rubber sliding saddle shelf system for wine bottles

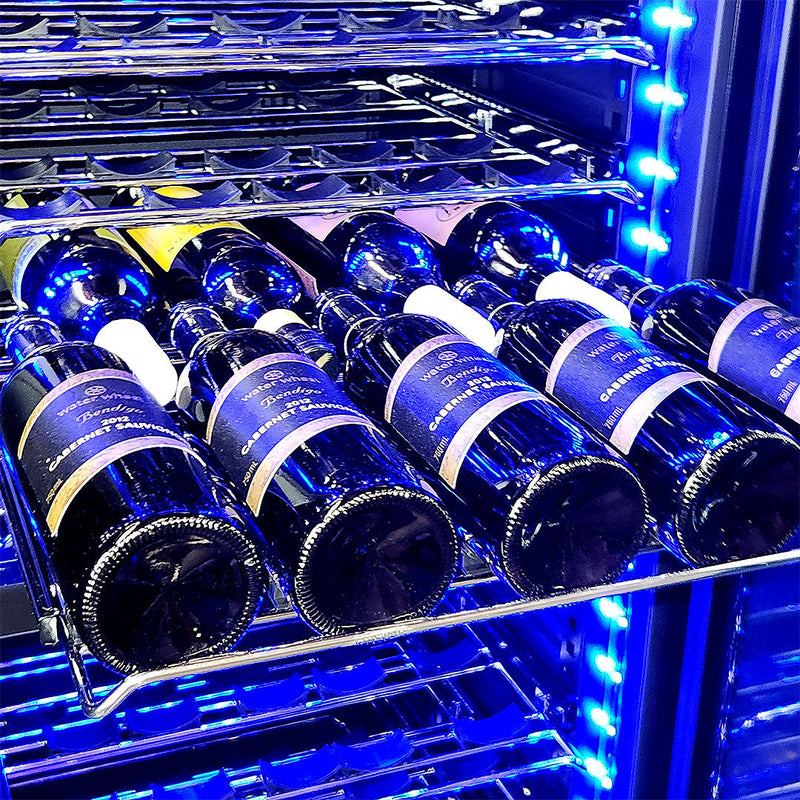

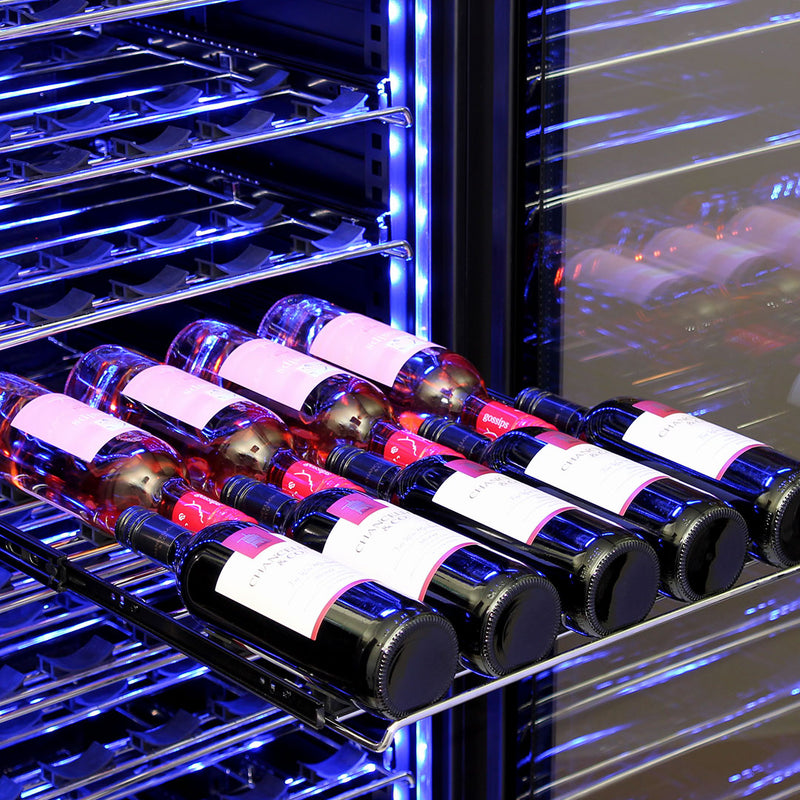

• Telescopic ball bearing slide-out shelving

• Adjustable shelving with 20 mm spacing increments

• Front venting design suitable for built-in installation

• Quiet fan cooling system with quality branded components

⚙️ Technical Specifications

Model

BD425D-X-B

Brand

Schmick

Capacity

405 Litres

Wine bottle capacity

63 bottles

Indoor / Outdoor use

Indoor

Noise level

43 dB

Power consumption

1.24 kW / 24 hrs

Maximum ambient temperature

38°C

Energy Star Rating

10 ⭐

Exterior dimensions

595 x 695 x 1800 (WxDxH mm)

Interior dimensions

450 x 540 x 1600 (WxDxH mm)

Weight

129 kg

Door hinge

Right hinge (handle left)

Lockable

Yes

Body colour

Black

Interior finish

Black molded plastic

Door grill finish

Black

Adjustable feet

📏 Dimensions & Fit

External Dimensions

595 x 695 x 1800 (WxDxH mm)

Internal Dimensions

450 x 540 x 1600 (WxDxH mm)

Ventillation

Front Venting

Ventiallation Clearance

50 mm Rear (or more depending on plug position); 20 mm Both Sides, 20 mm Top

🔇 Noise Level

43 dB

For a better understanding of noise levels read this guide

⭐ Energy Rating

Energy Star Rating

10 ⭐ (6 + 4)

🌬️ Ideal Applications

• Home bars
• Kitchens
• Entertainment areas
• Hospitality spaces
• Wine storage areas

📘 Additional Information & Resources

This unit uses quality branded components including Jiaxipera compressors and Schmick quiet fans, designed for reliable long-term performance.

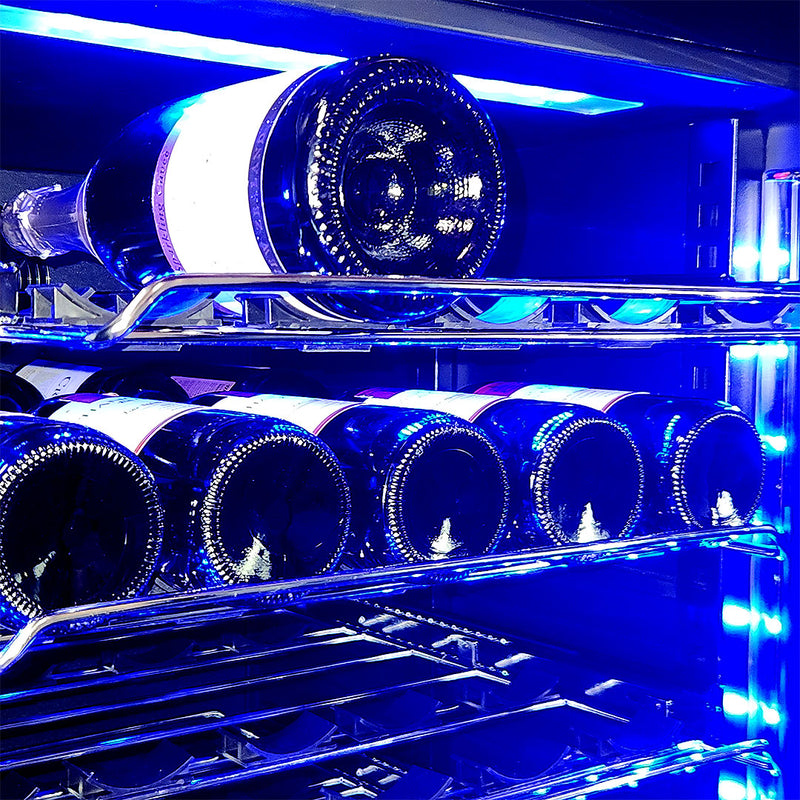

Energy-saving features include LOW E glass, LED lighting, R600 refrigerant and efficient fan systems. The sliding rubber saddle system allows different bottle sizes, including larger formats, to be stored securely.

A matching beer fridge (model BD425B) is also available for paired installations.

Want to maintain your Stainless Steel fridge so it looks like new for years to come? Follow this guide for everything you need to know

Want to learn more about IP (Ingress Protection)? This guide will give you a quick run down of what it means for you.

For a more comprehensive guide our in depth A-Z bar fridge guide is a good place to outline all the important information you should know.

🧱 Build In Specifics for BD425D

The BD425D-X-B is a front venting wine and beverage fridge, allowing it to be installed into cabinetry or built into bar or kitchen spaces.

This makes it suitable as a built-in bar fridge or under cabinetry where rear ventilation is not possible. Ensure surrounding cabinetry allows for proper airflow.

Our Unique Fridge Fitting Tool

Planning a cabinet or already have a space prepared for your fridge? The BD425D bar fridge is designed to work in built-in installations such as outdoor kitchens, alfresco cabinets and home bar setups, but confirming the correct ventilation and clearance space is essential for reliable cooling performance.

You can use our Bar Fridge Fit & Cabinet Size Tool to instantly check which fridges will fit your available space. Simply enter your cabinet width, height and depth to see compatible bar fridge models and recommended ventilation clearances.

👉 Use the Bar Fridge Fit Tool By Opening This Link

Model Codes

BD425D-X-B

🚚 Delivery Information

Due to the size and weight of the BD425D-X-B, delivery is handled via freight services rather than standard courier. This may mean delivery times are 1-2 weeks. All fridges are covered by freight warranty and requires a proper appliance delivery company.

Delivery is available across Australia. Ensure access is suitable for a full-height appliance including doorways, stairs and installation space.

For more information regaring our delivery policy follow this link

Schmick BD425D-X-B dual zone wine & drinks fridge FAQ's

Is the BD425D-X-B suitable for both wine and beverages?

Yes, the BD425D-X-B is designed as a dual zone wine and beverage refrigerator, with a dedicated top section for wine and lower drawers for drinks stored at colder temperatures.

Can the BD425D-X-B be built into cabinetry?

Yes, the BD425D-X-B features a front venting design, which allows it to be installed into cabinetry or built into a bar or kitchen space with proper clearance. At a minimum tis is 50 mm at the Rear, 20 mm both sides, and 20 mm top

What temperature ranges does the BD425D-X-B support?

The BD425D-X-B has two zones, with the upper wine section operating between 5°C to 20°C and the lower section between 2°C to 12°C for colder beverages.

How many bottles can the BD425D-X-B wine fridge hold?

The BD425D-X-B can hold approximately 63 wine bottles in the upper section, with additional storage available in the lower drawers for other drinks.
