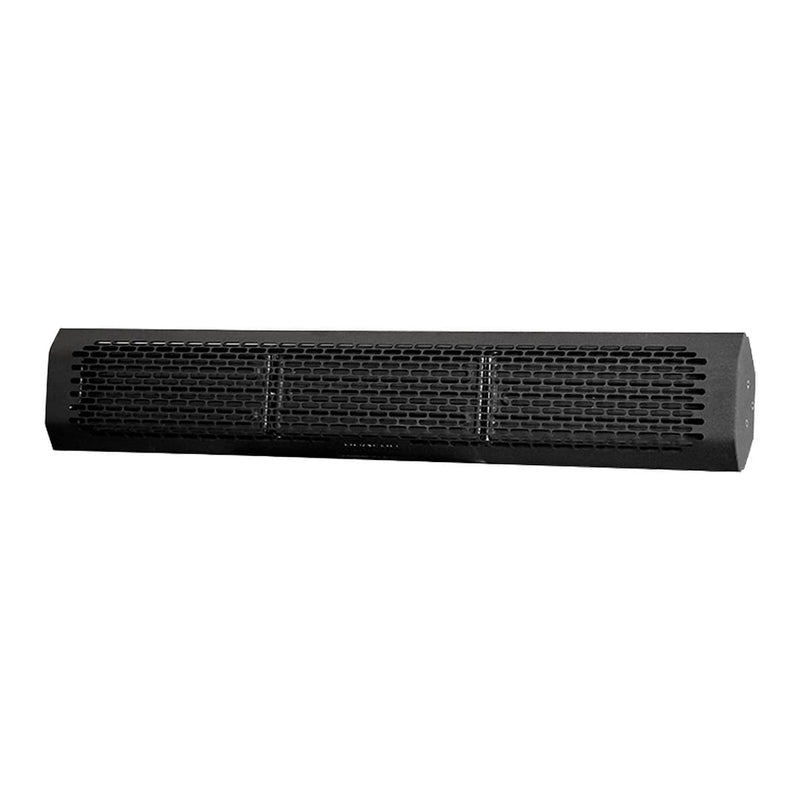

Herschel Aspect XL Zero-Light Infrared Heater – 650W to 2600W

The Herschel Aspect XL Zero-Light Infrared Heater is a high-temperature electric infrared heater designed for commercial indoor heating in offices, restaurants, retail stores, churches, studios and large open spaces. Available in 650W, 1300W, 1950W and 2600W models, Aspect XL provides targeted radiant warmth from a compact black heater that can be installed on a wall or ceiling.

Manufactured in the UK, the Aspect XL uses high-output ceramic infrared emitters and an aluminium reflector to direct warmth towards people and surrounding surfaces. The discreet black powder-coated stainless steel housing and front grille make it suitable for commercial interiors where powerful heating is needed without the bright visible glow associated with conventional radiant heaters.

The Herschel Aspect XL is particularly effective for heating occupied zones within larger rooms, helping reduce the need to heat unused areas. Each unit requires a compatible external thermostat and professional electrical installation. Wall mounting brackets are supplied, while ceiling mounting requires the appropriate separately purchased brackets.

• Four heating outputs: Choose from 650W, 1300W, 1950W or 2600W to suit different room sizes and heating requirements.
• Zero-light heating design: Delivers far-infrared radiant warmth without the bright light produced by many conventional infrared heaters.
• High-output ceramic emitters: One to four longwave ceramic elements provide heating output appropriate to the selected model.
• Wide radiant heat distribution: An internal aluminium reflector directs warmth forward across the occupied heating area.
• Compact black finish: Powder-coated stainless steel housing with a discreet front grille.
• Wall or ceiling mounting: Suitable for elevated indoor installation using the correct mounting hardware.
• Wall brackets included: Supplied brackets support standard wall installation.
• Optional ceiling brackets: Dedicated mounting accessories are available for the smaller XL1/XL2 and larger XL3/XL4 models.
• Fast warm-up: Designed to reach operating temperature in under five minutes.
• Commercial zoned heating: Multiple heaters can be arranged to warm specific working, dining or occupied areas.
• Quiet operation: No fans or forced-air circulation.
• Thermostat compatibility: Works with suitable Herschel iQ temperature controllers.
• Indoor protection: IPX4 ingress protection for suitable indoor installations.
• British-made construction: Manufactured in the UK.
• Recyclable packaging: Supplied using recyclable packaging materials.
• Five-year warranty: Main heater warranty, with separate 12-month coverage for ceramic heating elements.

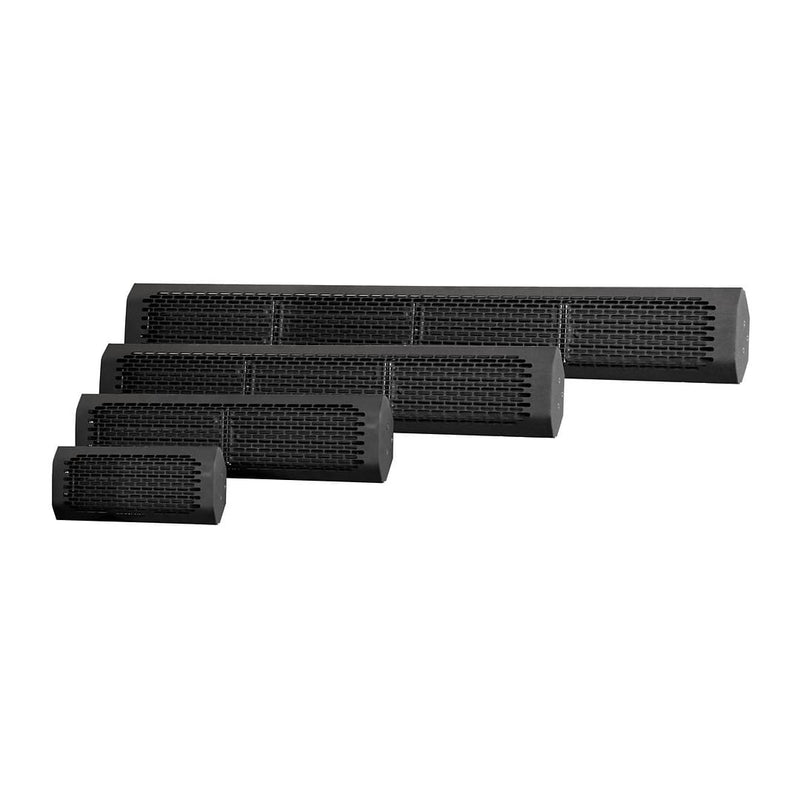

The Herschel Aspect XL is available in four sizes, allowing the heater output to be matched to the intended heating area.

All models use the same black housing design, with the overall length increasing as additional ceramic emitters are added.

Model selection

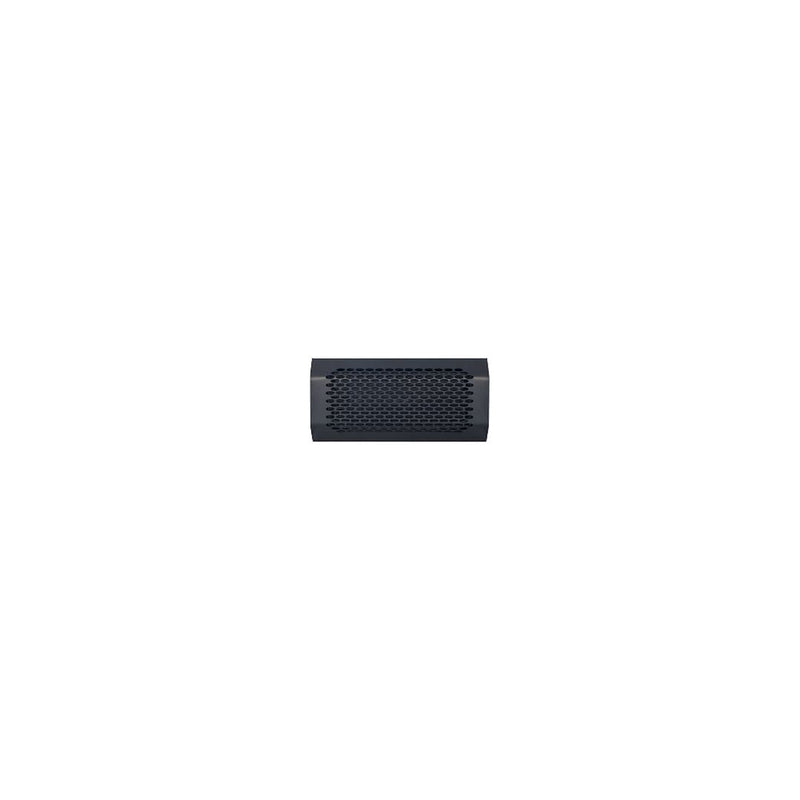

• IRXL1-650 – 650W: The smallest Aspect XL model, measuring 300 × 140 mm. Suitable for an estimated indoor heating area of 3–6 m². A practical choice for smaller commercial heating zones.

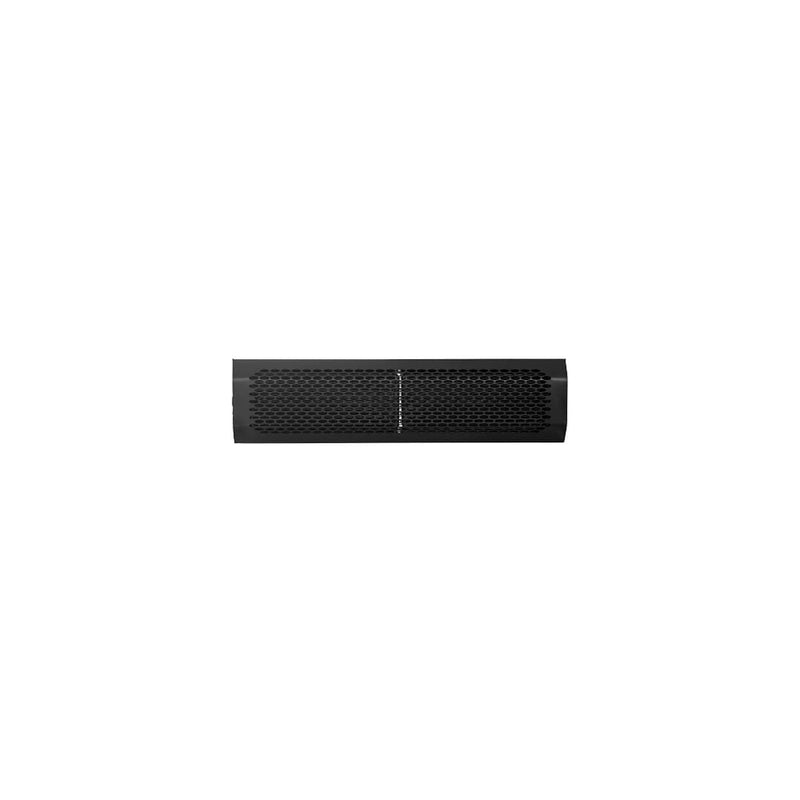

• IRXL2-1300 – 1300W: Measures 550 × 140 mm and provides estimated heating coverage of 6–9 m². Suitable for smaller reception areas, individual work zones and selected indoor seating areas.

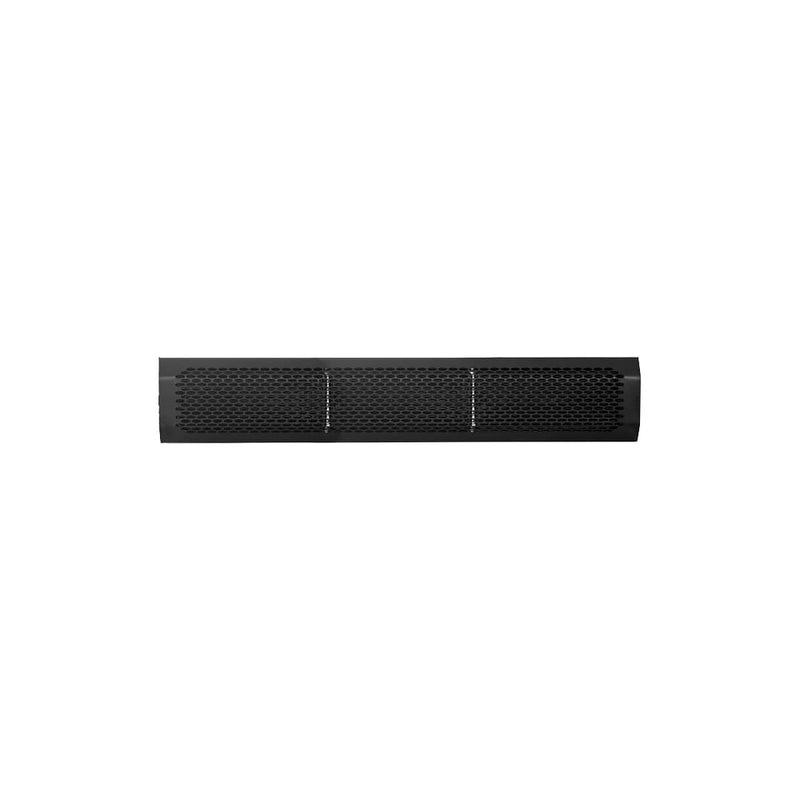

• IRXL3-1950 – 1950W: Measures 820 × 140 mm and provides estimated coverage of 9–12 m². Suited to larger occupied zones, restaurants, retail environments and commercial interiors.

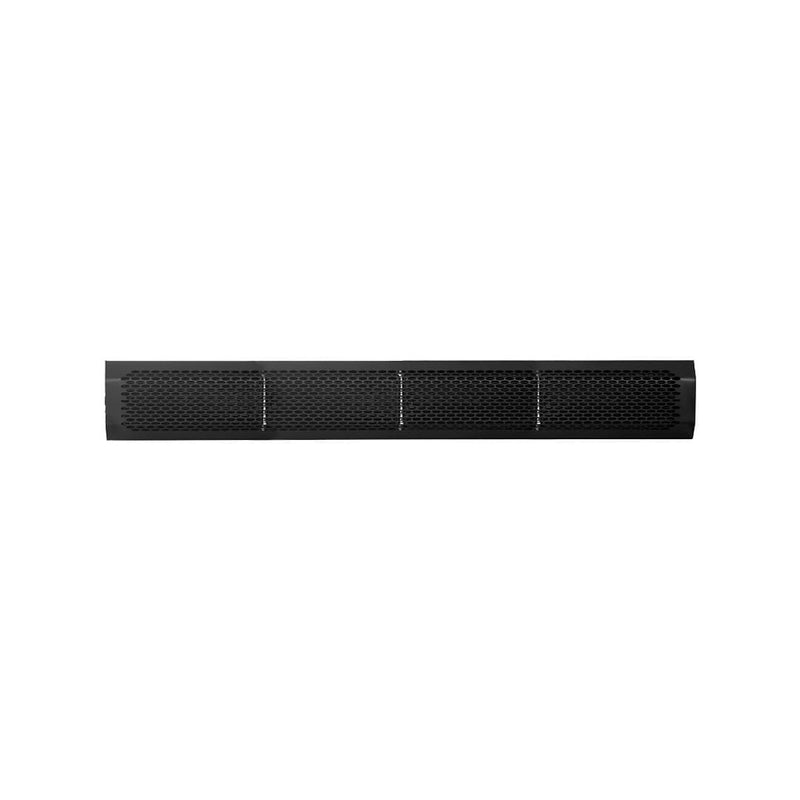

• IRXL4-2600 – 2600W: The largest model, measuring 1100 × 140 mm, with estimated indoor heating coverage of 12–18 m². Suitable for larger commercial zones requiring additional heating output.

Heating areas are indicative and assume suitable indoor conditions and mounting heights.

The correct model should be selected according to the room's heating requirements rather than floor area alone. Insulation, glazing, ceiling height, external walls, ventilation and air movement all influence the effective heating area.

For larger commercial spaces, multiple Aspect XL units can be distributed across the room to provide more consistent warmth. This is particularly useful where only selected areas are occupied throughout the day.

The Herschel Aspect XL combines high-output ceramic infrared heating with a discreet black finish, making it particularly suitable for commercial environments where heating equipment remains visible to customers and staff.

Its ceramic elements emit far-infrared warmth without the bright glare associated with conventional quartz or halogen heaters. A faint orange glow may be visible from the elements under some operating conditions.

The heater is suitable for single-zone heating or as part of a larger installation using multiple units and suitable temperature controls.

Cleaning and maintenance

The Aspect XL requires minimal routine maintenance.

Before cleaning, isolate the electrical supply and allow the unit to cool completely.

Use a soft, dry cloth to remove dust from accessible exterior surfaces. Avoid abrasive cleaning products, water sprays, pressure washers and steam cleaners.

Check the mounting brackets, surrounding clearances and electrical cable position periodically to ensure the heater remains securely installed.

Zoned heating

Multiple Aspect XL heaters can be arranged into separate heating zones, allowing different areas of a commercial building to be controlled independently.

For example:

• A restaurant can heat occupied dining areas without maintaining the same temperature in unused sections.
• A reception area can operate on a different schedule from adjoining offices.
• A larger retail store can divide heating into sections based on customer activity and occupancy.
• A studio can use multiple heaters to distribute radiant warmth across its working or exercise areas.

Programmable and Wi-Fi functions depend on the chosen thermostat rather than the heater itself.

The Herschel Aspect XL uses ceramic infrared emitters to deliver radiant warmth towards people and surrounding surfaces.

Unlike fan heaters, the system does not depend on continuous forced-air circulation to distribute its heating output.

Heating performance

• Fast warm-up in under five minutes.
• Direct infrared warmth within the heater's projected heating zone.
• Wide radiant heat distribution through the aluminium reflector.
• Silent, fan-free operation.
• Compatible with thermostatic control for scheduled heating.
• Suitable for multiple heating zones in commercial installations.

Electricity consumption

Each heater's rated wattage determines its maximum electrical input during continuous operation.

The 650W model uses less electricity at full output than the 1300W, 1950W or 2600W models, but also provides a smaller heating zone.

Actual running costs depend on the selected model, electricity tariff, operating hours, thermostat settings and heating demand.

Correct heater sizing and zoning are important for avoiding unnecessary heating. A lower-powered unit is not automatically the most economical choice if it cannot adequately heat the intended space.

The Herschel Aspect XL is well suited to commercial spaces requiring directed radiant warmth without an obvious bright heating element.

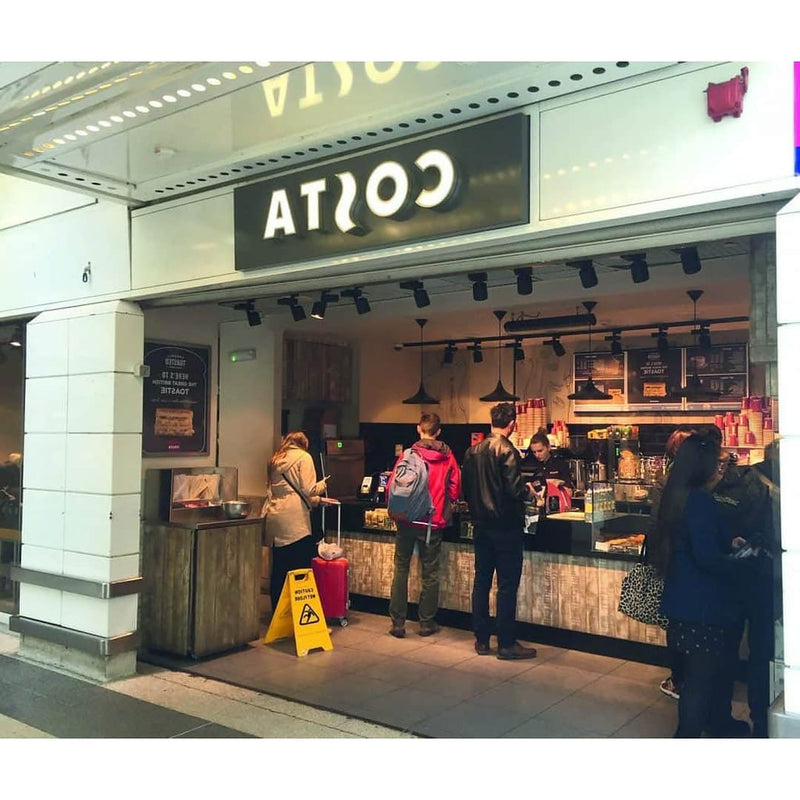

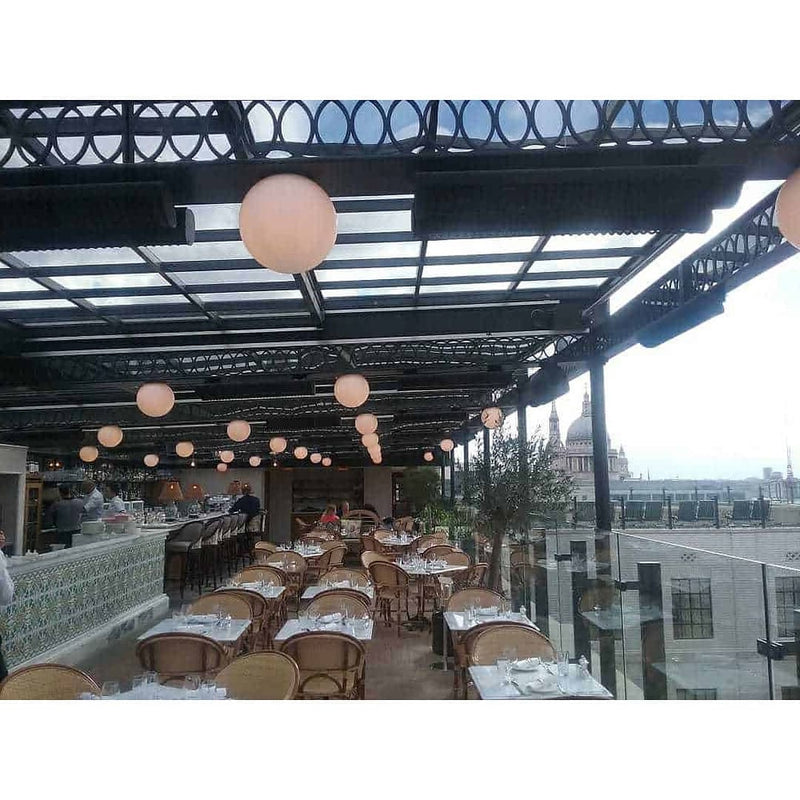

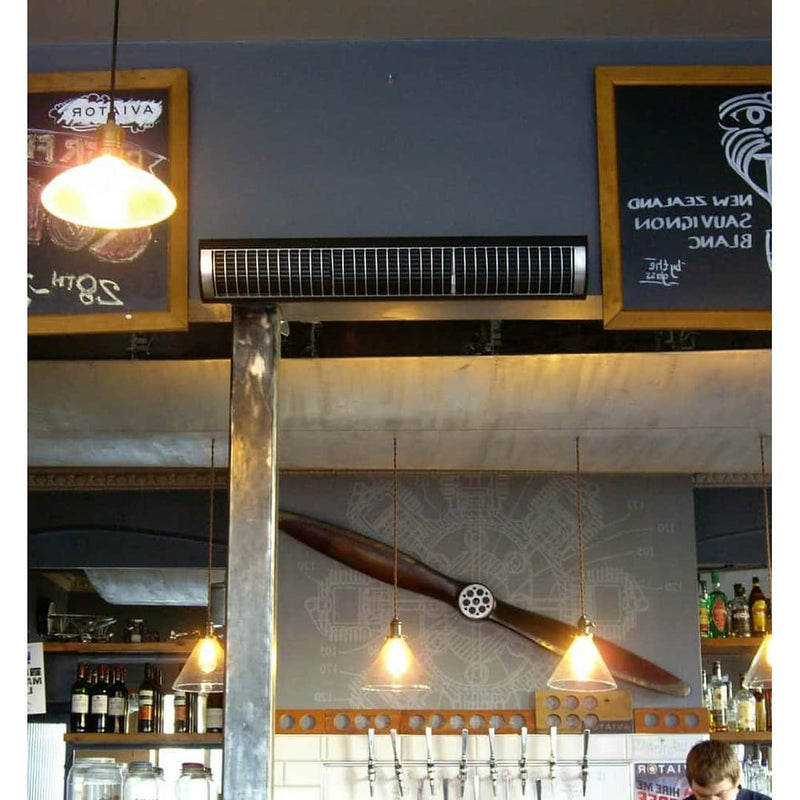

Restaurants, bars and hospitality interiors

Aspect XL heaters can be mounted above seating areas to provide warmth directly to customers while maintaining a discreet appearance.

For restaurants and hospitality venues with large windows or doors that open regularly, the heating layout should account for additional air movement and heat loss.

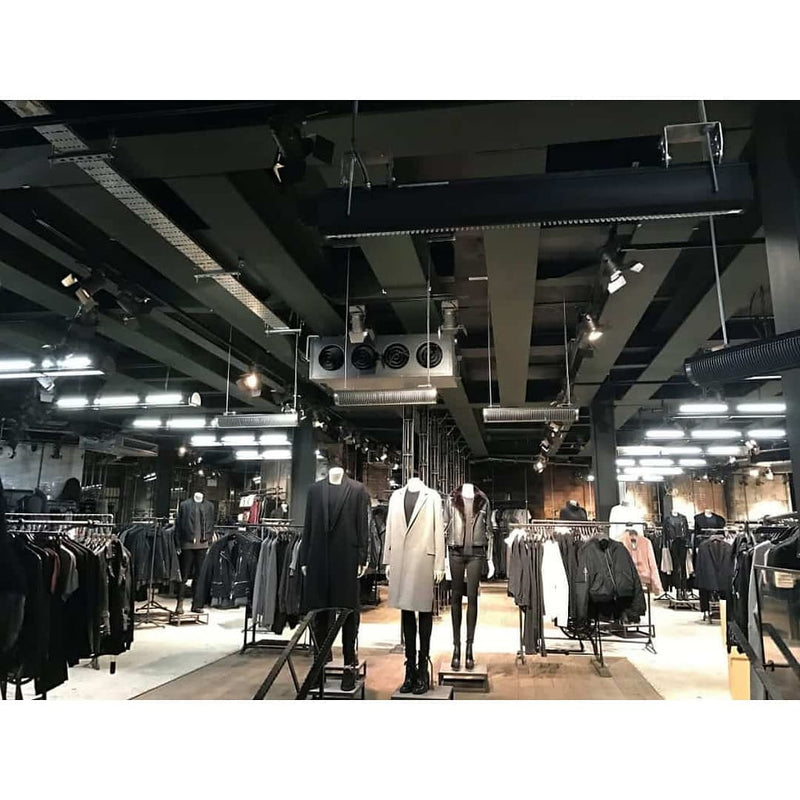

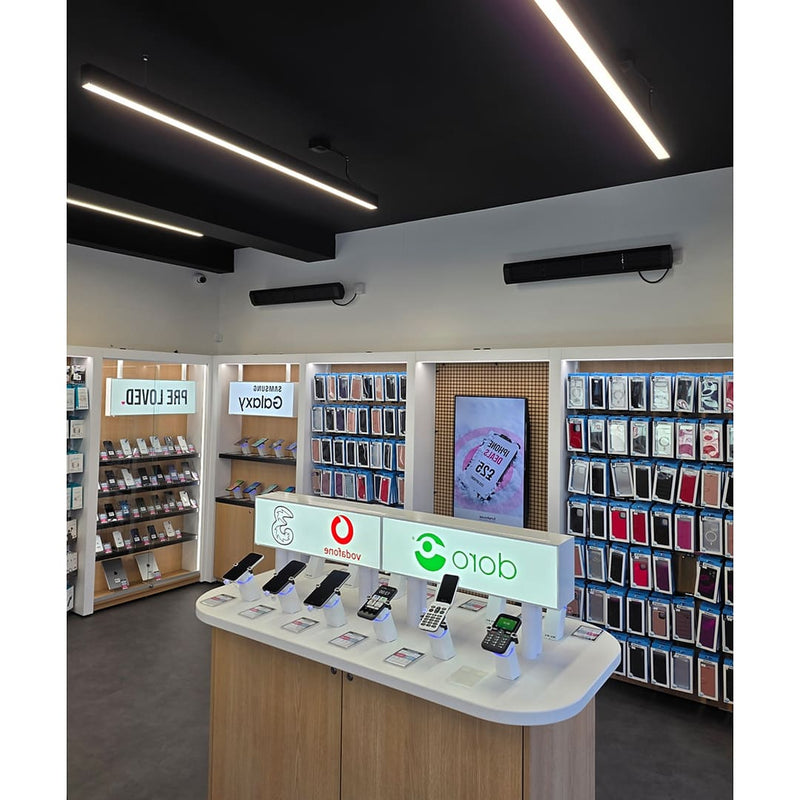

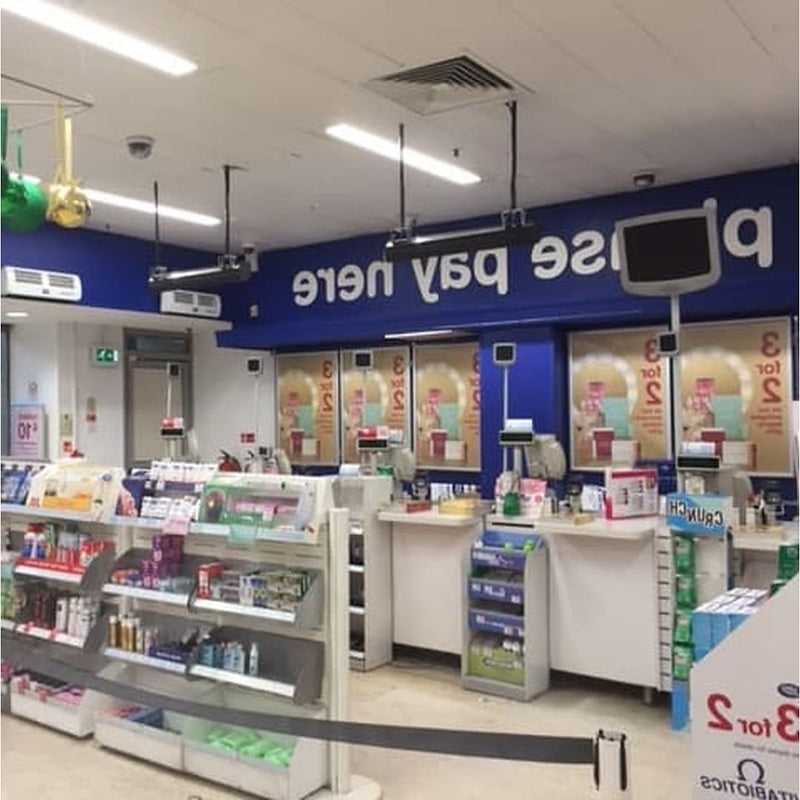

Retail stores and showrooms

Wall and ceiling mounting help keep floor space available for displays and customer movement.

Multiple heaters can be positioned to cover specific retail zones rather than providing the same level of heating across storage and less frequently occupied sections.

Offices and reception areas

The fan-free heating system provides quiet radiant warmth without circulating air through the room.

Where several offices or reception areas are involved, separate thermostats and heating zones can be used to suit different operating schedules.

Churches, halls and high-ceiling spaces

The higher-output Aspect XL models can be used in suitable larger interiors where conventional low-temperature heating panels may not provide the required directed heating.

These installations require particular attention to ceiling height, radiant heat distribution and the number of heaters.

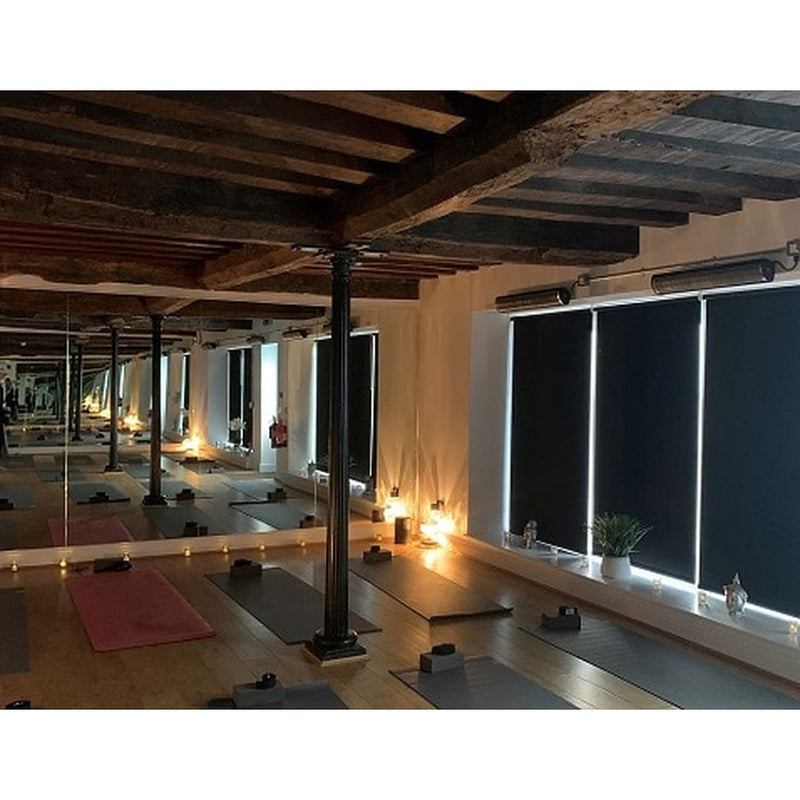

Studios and wellness spaces

Aspect XL heaters can also be used in appropriate yoga, fitness and wellness installations where directed infrared warmth is required.

For specialist high-temperature studios, the total heating system must be designed around the target temperature, room heat loss and ventilation requirements.

The Herschel Aspect XL requires a separate compatible thermostat or temperature control system.

The heater does not include an integrated thermostat, remote control or built-in Wi-Fi connection.

Compatible control options include:

• Herschel iQ MD2 Wired Thermostat: A wired wall controller for suitable fixed installations, with programmable heating control.
• Herschel iQ T2 Wireless Thermostat Pack: A wireless temperature control solution for compatible heating installations.

The thermostat should be selected according to the installation's wiring requirements, connected load and desired control features.

Correct installation height and positioning are essential for safe operation and effective radiant heat distribution.

The Aspect XL uses high-temperature ceramic heating elements, so the heater must remain out of reach during normal use.

Recommended mounting heights

• IRXL2-1300: 2.3–2.5 metres above floor level.
• IRXL3-1950: 2.3–2.5 metres above floor level.
• IRXL4-2600: 2.5–3.0 metres above floor level.
• IRXL1-650: Install at a height that complies with the current mounting instructions and prevents accidental contact.

Installation considerations

• Ceiling separation: Maintain the required clearance between the heater and ceiling materials.
• Wall mounting angle: Direct the heater towards the intended occupied area using the supplied adjustable mounting brackets.
• Combustible materials: Keep timber, fabric, curtains, furnishings and other heat-sensitive materials outside the required safety clearances.
• Front clearance: Ensure the radiant heating surface is not obstructed by furniture, displays or other objects.
• Adjacent heaters: Maintain appropriate spacing when multiple units are installed.
• Electrical wiring: Cables must not rest against or be positioned close to the hot ceramic emitters or housing.
• Mounting hardware: Use only brackets suitable for the model and installation type.
• Ceiling mounting: Follow the specific requirements for the optional ceiling brackets.

Important safety requirements

The heater must never be covered, enclosed in a ceiling recess or positioned where people can touch the heating elements during operation.

Allow the unit to cool completely before cleaning or servicing.

All mounting heights, angles and separation distances must comply with the current installation instructions for the selected model and bracket arrangement.

The Aspect XL is supplied for commercial indoor heating. It should not be selected as an outdoor patio heater, even though the unit has IPX4 protection.

• Aspect XL Technical Data Sheet
• Aspect XL Installation Instructions

The Herschel Aspect XL is supplied with a five-year manufacturer warranty, subject to the applicable warranty conditions.

Ceramic heating elements have separate warranty coverage of 12 months.

Safe installation and operation

• Installation must be completed by a licensed electrician.
• A compatible external thermostat is required.
• The heater must be securely fixed to a suitable structure.
• Correct mounting brackets must be used for wall or ceiling installation.
• All required safety clearances must be maintained.
• The heater must remain out of reach during normal operation.
• The ceramic elements and surrounding housing become very hot during use.
• Electrical cables must remain clear of heated surfaces.
• The heater must never be covered or obstructed.
• The unit must cool completely before cleaning or servicing.
• Repairs and electrical servicing must be performed by suitably qualified personnel.

Correct installation, appropriate temperature control and regular checks of the mounting arrangement will help maintain safe long-term operation.
