🔎 Overview
The Herschel Touch Screen Control Centre S-TSCC is a wall-mounted smart heating control panel designed to manage multiple Herschel infrared heaters and heating zones from one central location. Featuring a 4-inch touchscreen and Smart Life Wi-Fi connectivity, it provides convenient access to whole-home heating routines, connected thermostats and programmable scenes.
The S-TSCC allows homeowners to activate preconfigured heating settings with a single touch. For example, a Leaving Home scene can reduce the temperatures across several rooms, while a Home scene can restore preferred comfort settings. Up to 100 Smart Life scenes can be accessed through the controller, with two favourite scenes displayed on the main screen for quick operation.
The Herschel Touch Screen Control Centre works alongside compatible Wi-Fi-enabled thermostats rather than replacing them. Each thermostat continues to measure room temperature and control its connected infrared heaters, while the S-TSCC provides centralised management. Its compact 86 × 86 mm design, mains-powered operation and Smart Life integration make it particularly useful for modern homes with heating in multiple rooms.
📏 Size & Fit Information
The Herschel Touch Screen Control Centre has a compact square housing measuring 86 mm wide, 86 mm high and 36 mm deep.
Its 4-inch touchscreen provides a convenient central interface without requiring the wall space of a larger home automation display.

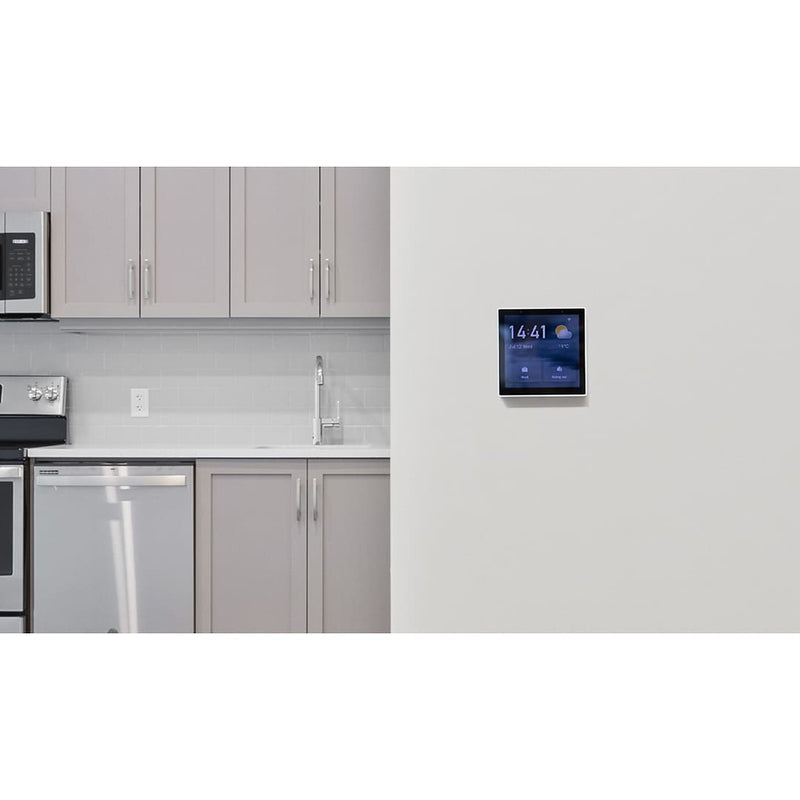

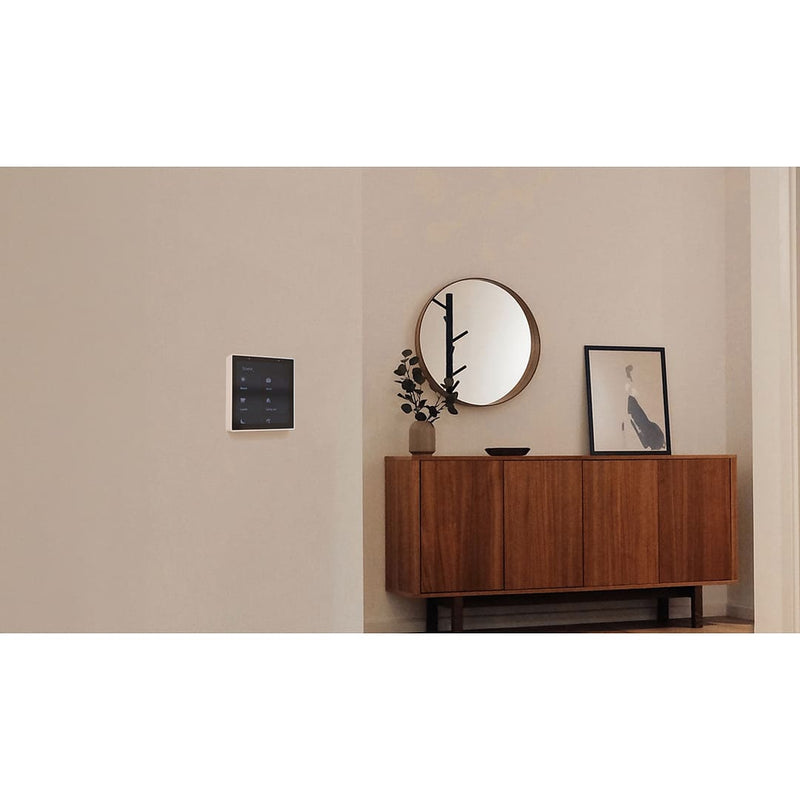

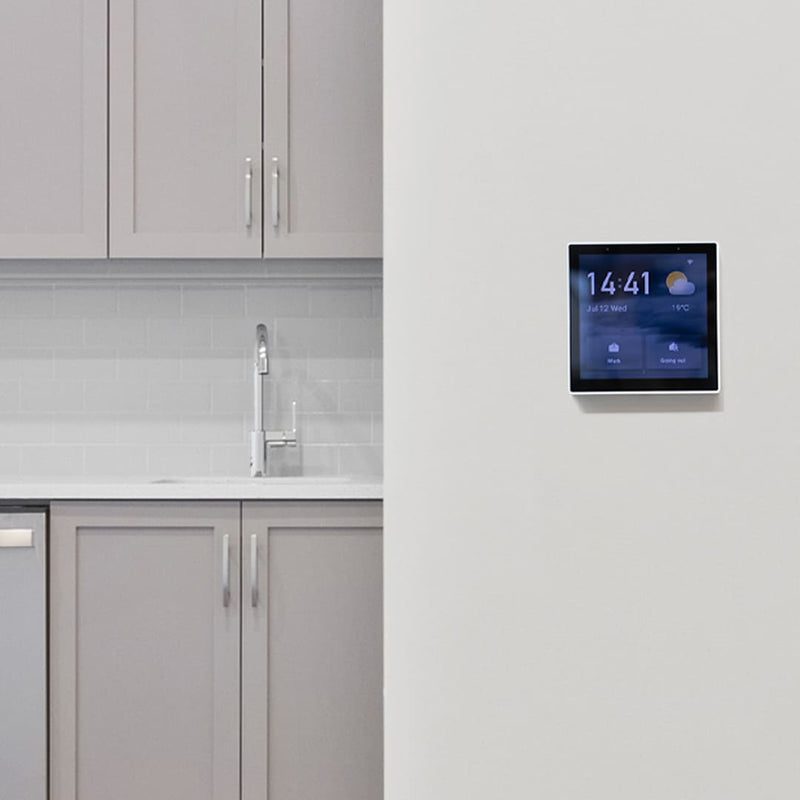

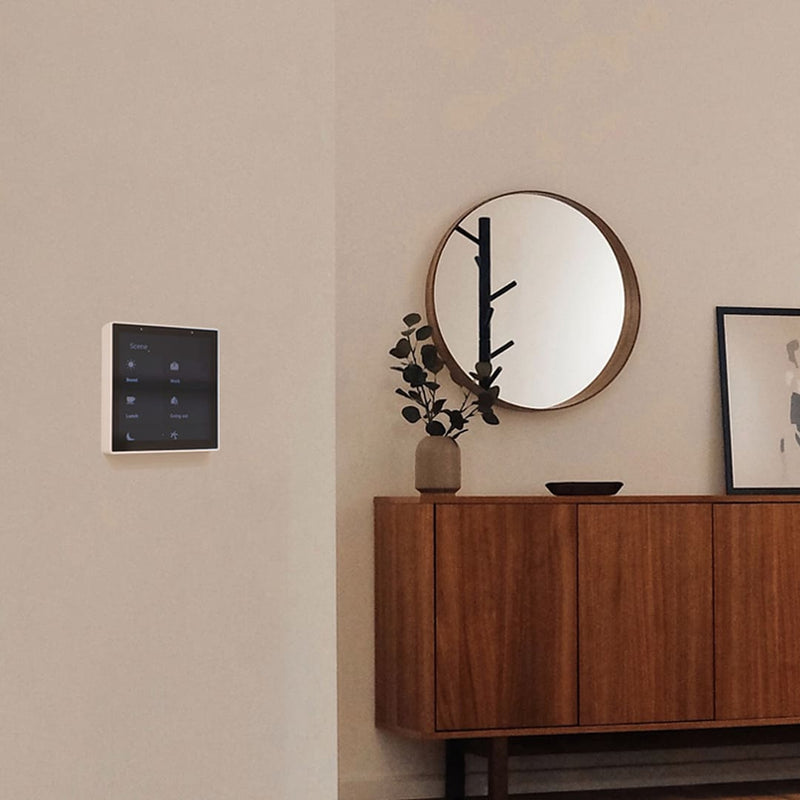

The S-TSCC is designed for fixed wall mounting and can be installed in a convenient indoor location such as a hallway, living area or central point between frequently used rooms.
Choosing the installation position
Select a wall location that is easy for household members to access and view.
A central hallway is often practical for whole-home heating control, allowing heating scenes to be activated when entering or leaving the property.
The controller must have access to a suitable mains electrical supply and reliable 2.4 GHz Wi-Fi coverage.
Unlike a room thermostat, the S-TSCC does not need to be positioned where it can accurately measure ambient room temperature. Temperature sensing remains the responsibility of the thermostats installed in the individual heating zones.
Whole-home applications
One S-TSCC can provide centralised access to multiple compatible heating zones through Smart Life.
The number of heaters connected to each thermostat depends on the electrical capacity and compatibility of that thermostat, not the size of the touchscreen control centre.
📘 Additional Information & Resources
The Herschel Touch Screen Control Centre brings compatible infrared heating controls together through the Smart Life platform.
It is particularly useful when several rooms have separate thermostats, giving households a convenient way to change heating settings across the property without visiting every room.
The controller also provides access to compatible Smart Life home automation scenes, allowing heating routines to be coordinated with other supported smart-home devices.
Cleaning and care
The touchscreen requires minimal routine maintenance.
Clean the display using a soft, dry microfibre cloth. Avoid abrasive cleaning products, solvents and excessive moisture.
Electrical servicing must be completed by suitably qualified personnel.
⚡ Infrared Heating Performance & Efficiency
📱 Smart Life Scenes & Whole-Home Heating Control

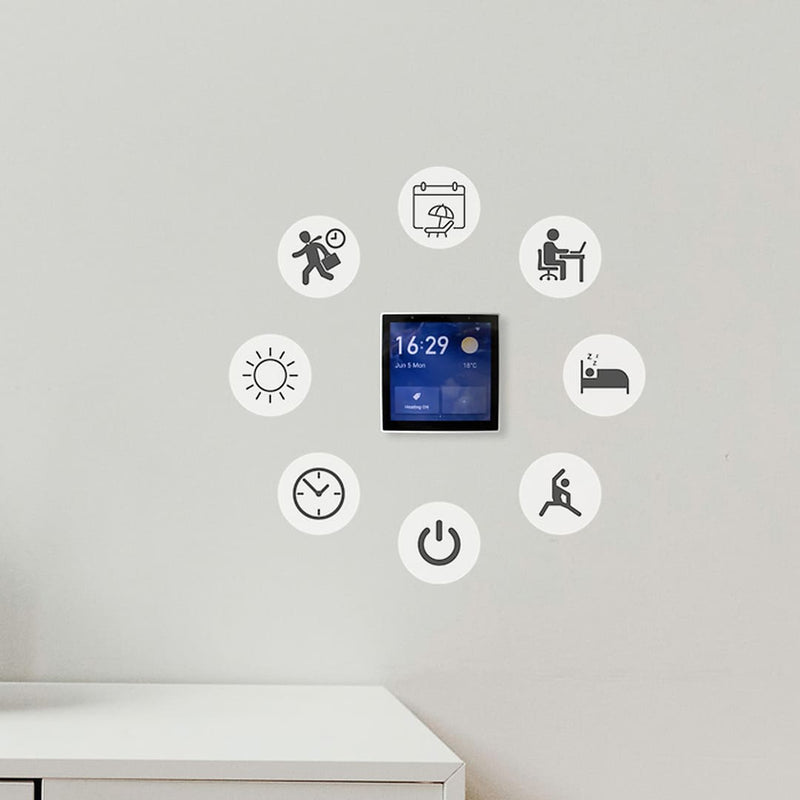

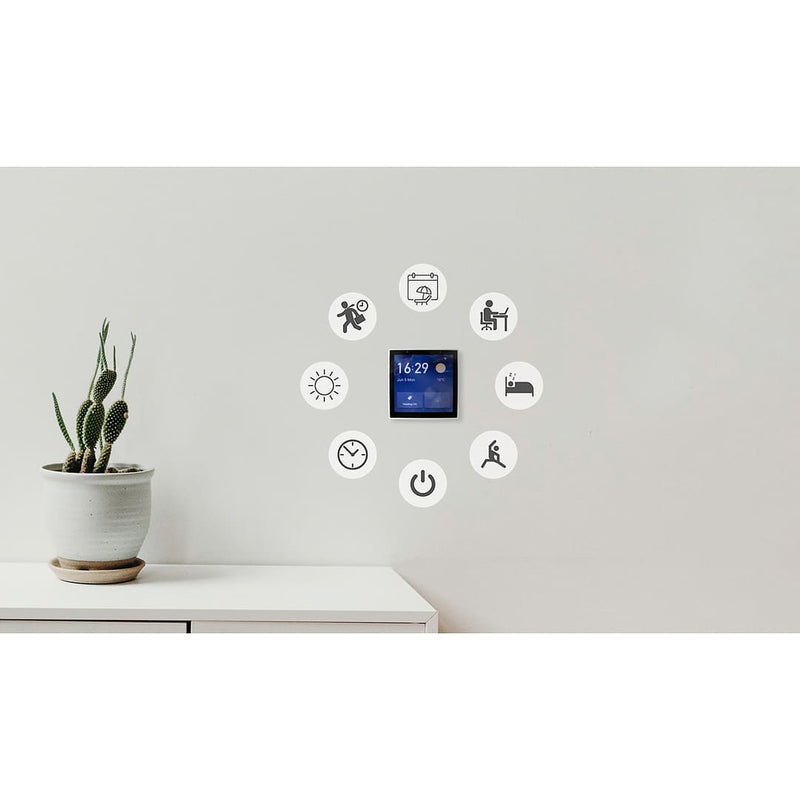

The Herschel Touch Screen Control Centre uses Smart Life scenes to coordinate heating across multiple compatible thermostats.
A scene is a group of predefined actions that can be activated together.
For example, rather than adjusting the living room, bedrooms and office thermostats separately, a single scene can apply the preferred settings to all three heating zones.
Common heating scenes
Home Mode
Restore preferred comfort temperatures in frequently occupied rooms.
This can be useful when returning home after work or switching from reduced daytime heating to normal evening temperatures.
Leaving Home Mode
Reduce the target temperature across selected rooms when the household is leaving.
This helps avoid running heating unnecessarily while the property is empty.
Holiday Mode
Apply reduced temperature settings across the property for an extended absence.
The routine can be activated from the touchscreen before leaving or through Smart Life when away.
Morning Mode
Activate a prepared set of heating actions for the rooms normally used in the morning.
Evening Mode
Restore preferred temperatures in living spaces and bedrooms according to the household's normal routine.
Custom Scenes
Create additional routines for home offices, guest rooms, weekend schedules or other heating requirements.
Managing scenes

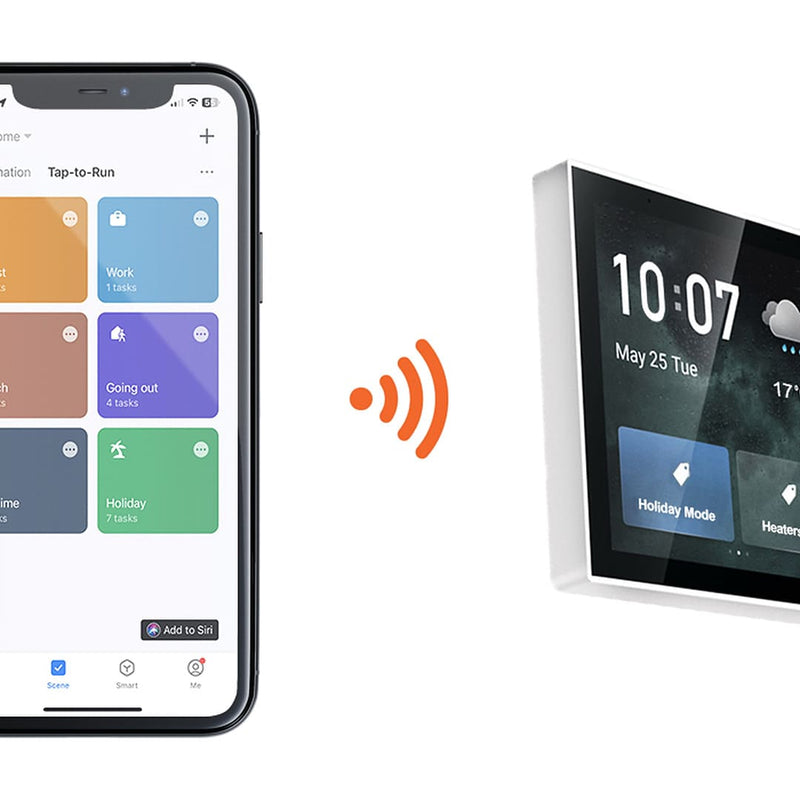

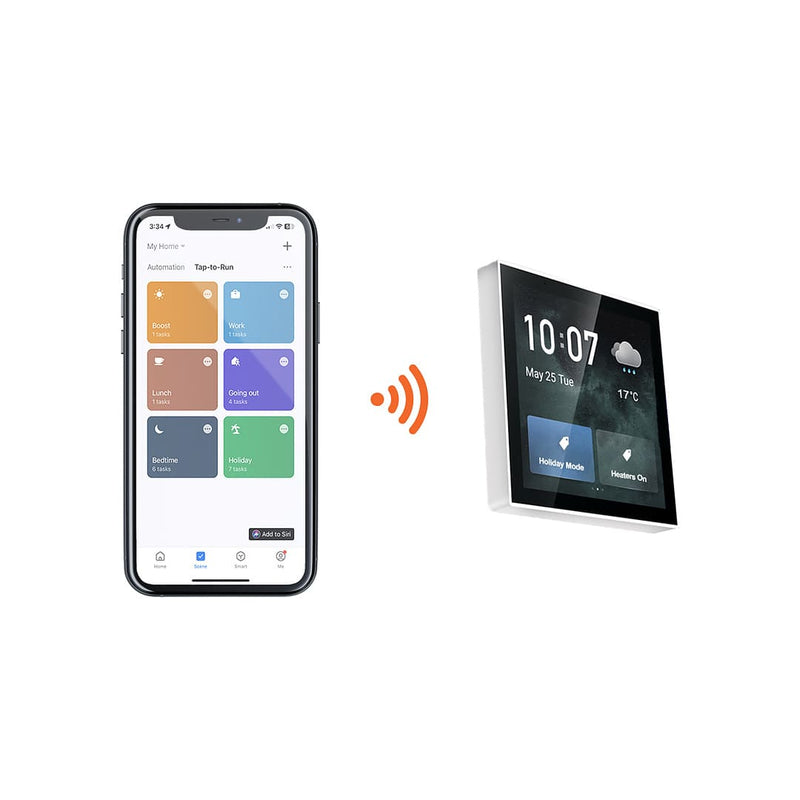

The control centre can access up to 100 configured Smart Life scenes.
Two favourite scenes can be assigned to the main screen for convenient one-touch operation.
Additional scenes are accessible through the touchscreen interface.
The available actions depend on the connected thermostats and the functions exposed through Smart Life.
⚡ Energy Management & Heating Efficiency
The Touch Screen Control Centre can help reduce unnecessary heating by making it easier to manage several thermostats together.
Centralised temperature reduction
A Leaving Home or Holiday scene can reduce heating temperatures across multiple rooms with one action.
This is particularly useful when a household would otherwise leave individual thermostats operating at their normal comfort settings.
Room-by-room heating
Compatible thermostats continue to regulate heating in their respective rooms.
This allows different rooms to maintain suitable temperatures without requiring the whole property to operate at one setting.
Heating schedules
Smart Life scenes can supplement existing thermostat schedules.
For example, a normal weekday schedule can operate the heating automatically, while a Leaving Home scene can temporarily apply reduced settings when occupants depart earlier than expected.
Heating performance
The S-TSCC does not increase the rated output or electrical efficiency of the heaters themselves.
Its energy-saving benefit comes from convenient control, coordinated heating routines and reduced unnecessary operating time.
Actual electricity savings depend on room insulation, heating demand, thermostat settings and how the scenes are configured.
🎛️ Thermostat & Heating Controls
The Touch Screen Control Centre should be positioned where it can be accessed easily and maintain a reliable connection to the property's wireless network.
Installation considerations
- Wi-Fi network: A 2.4 GHz connection is required.
- Network coverage: Confirm reliable wireless reception at the mounting location.
- Accessibility: Position the touchscreen at a convenient height for everyday use.
- Indoor location: Install in a suitable dry indoor environment.
- Electrical safety: All mains connections must be correctly enclosed and protected.
- Wall construction: Use an appropriate mounting arrangement for the selected wall.
- Moisture exposure: Avoid wet locations or positions exposed to water.
- Other equipment: Keep the unit accessible rather than installing it behind furniture or fixed fittings.
Network reliability
The S-TSCC relies on Smart Life connectivity to communicate with its associated heating controls.
If the internet or Wi-Fi connection becomes unavailable, the touchscreen may be unable to activate connected heating scenes.
Individual thermostats retain their own operating behaviour according to their model and configuration. The control centre should not be relied upon as the only means of maintaining essential room heating.
For large homes, suitable wireless access points or network extenders may be needed to provide reliable coverage throughout the property.
🖥️ Touchscreen Display & Everyday Operation
The S-TSCC provides a central interface for heating without requiring a phone for every routine adjustment.

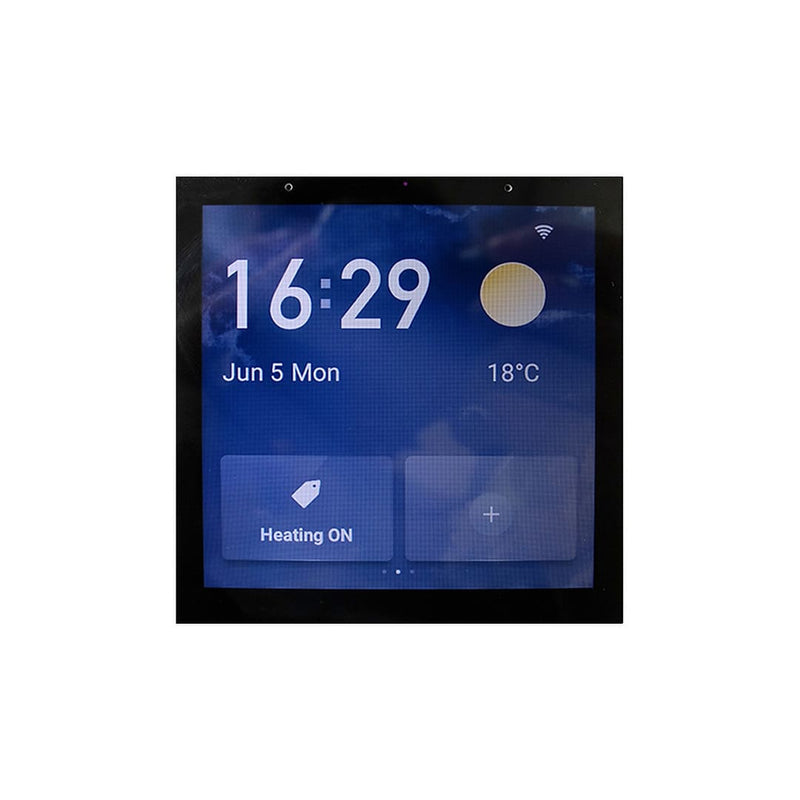

Home screen
The 4-inch display shows:
- Two configurable favourite heating scenes.
- Current time.
- Date.
- Weather information.
Scene navigation

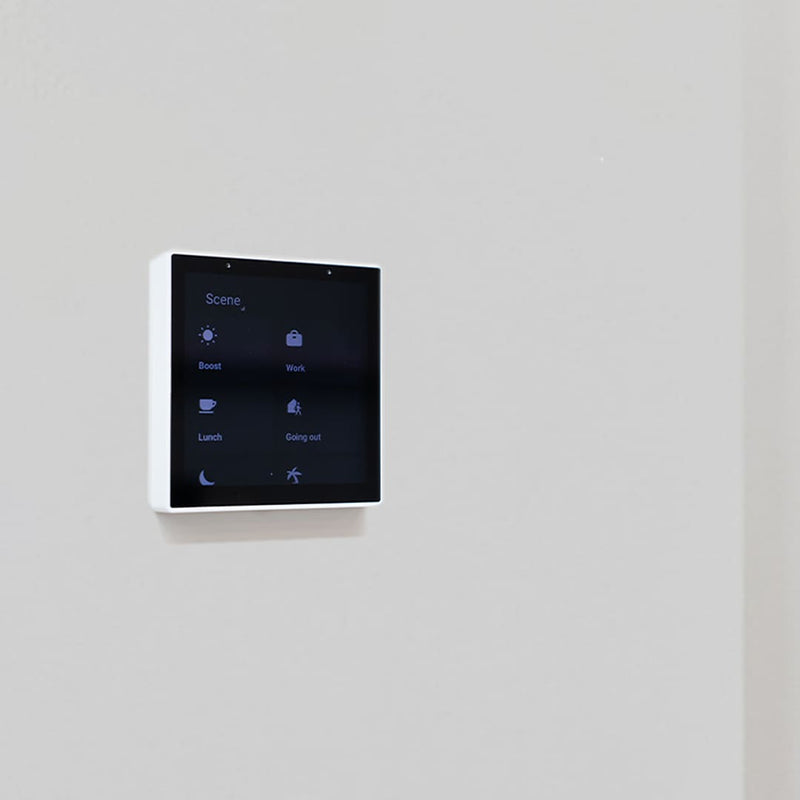

Swipe through the interface to access additional Smart Life scenes.
These can include whole-home heating routines, individual room adjustments and other compatible smart-home actions.
Connected thermostat overview
The touchscreen also provides access to paired Smart Life thermostats, allowing users to navigate their connected heating devices from one location.
Why central control is useful
In homes with several heating zones, traditional thermostat control requires users to visit each room or open the app individually.
The S-TSCC simplifies common operations by giving everyone in the household access to predefined routines from a shared wall-mounted controller.
🛡️ Warranty & Safety Information
The Herschel Touch Screen Control Centre includes a two-year manufacturer warranty, subject to the applicable conditions.
It is designed for fixed indoor installation as part of a compatible Smart Life heating system.
Safe operation and installation
- The mains connection must be installed by a licensed electrician.
- Use only a suitable electrical supply.
- Maintain reliable Wi-Fi coverage.
- Install the controller in a dry indoor location.
- Do not expose the touchscreen or electrical connections to water.
- Do not modify the controller or its electrical components.
- Keep all mains wiring safely enclosed.
- Use compatible thermostats for temperature regulation.
- Do not connect heater circuits directly to the S-TSCC.
- Electrical repairs must be completed by suitably qualified personnel.
The controller has no batteries requiring replacement and does not directly carry the connected heaters' electrical load.
